2024 Recycle Nitrogen Compressor
This is the assembly process and we are waiting for the main motor.

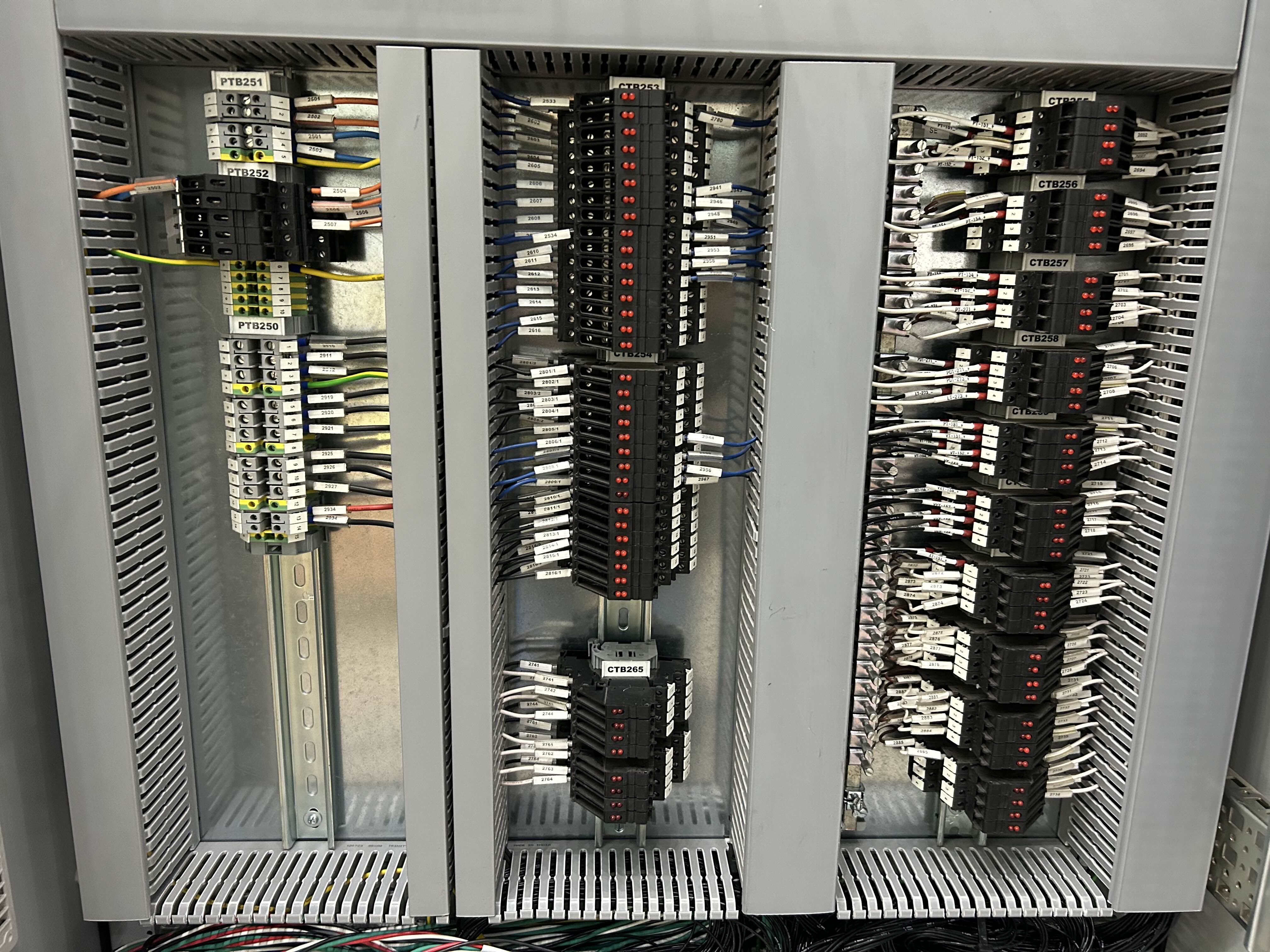

RIO panel by customer
This is from customer and we have to check all the terminal block inside according to the drawing and it needs to be updated.
To be ready for test conditions, the after cooler will not be used for the internal test to mert the inlet temperature of the compressor.
Also, the discharge piping is not our scope so it needs the shop piping.
There is additional port for pre-test.

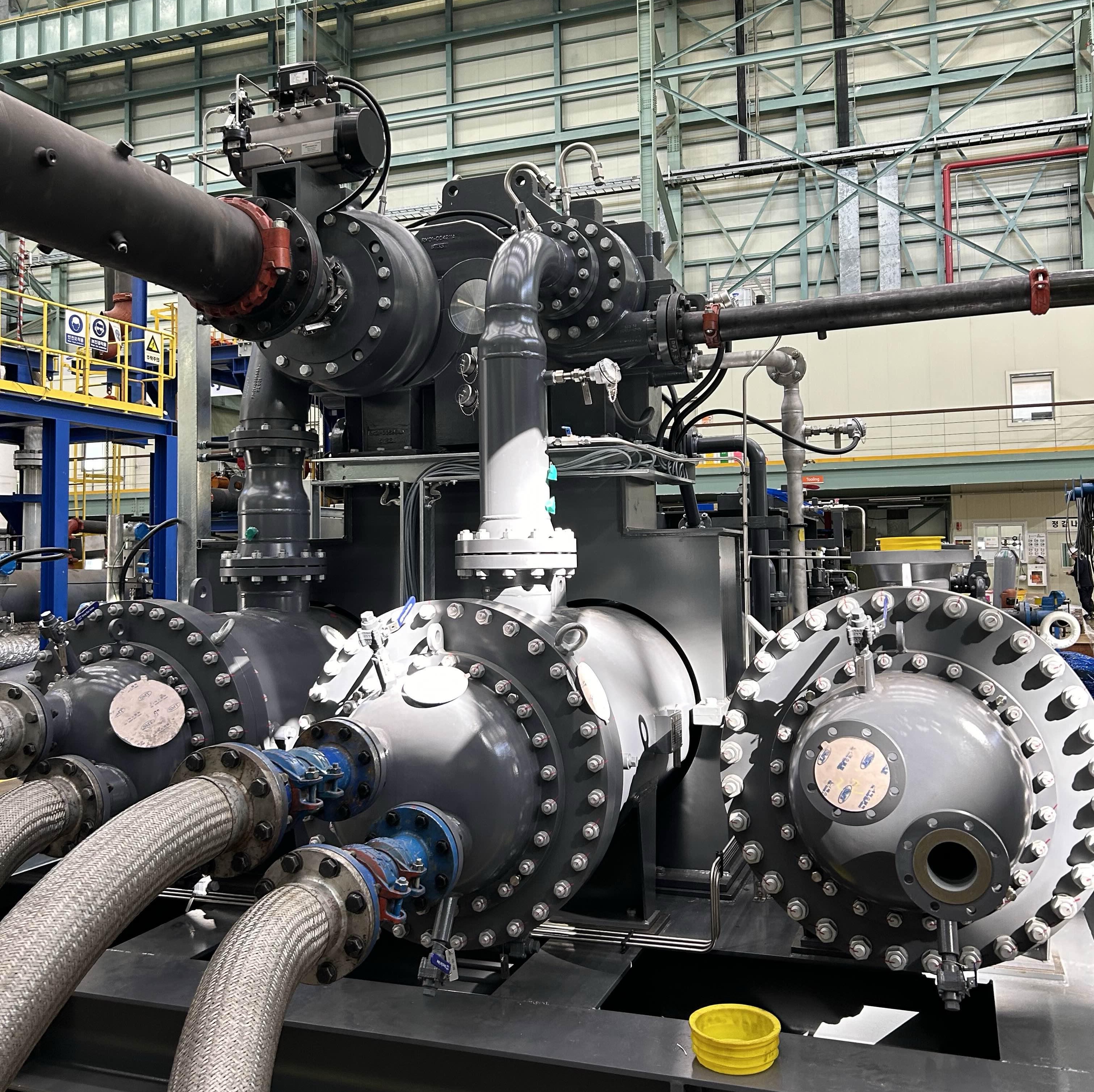

There is connection to cooler.

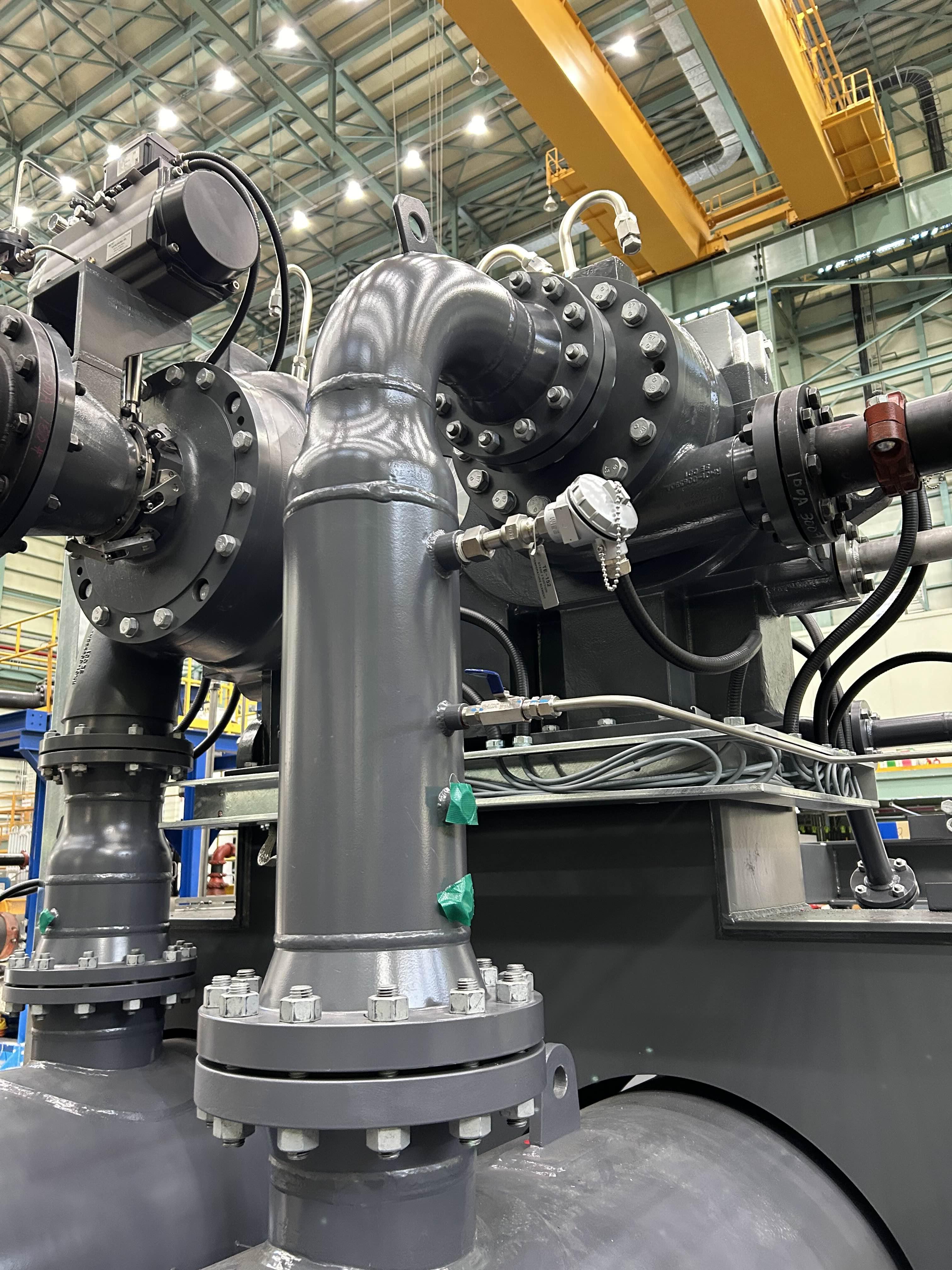

It is simple design.
Drain port for the cooler

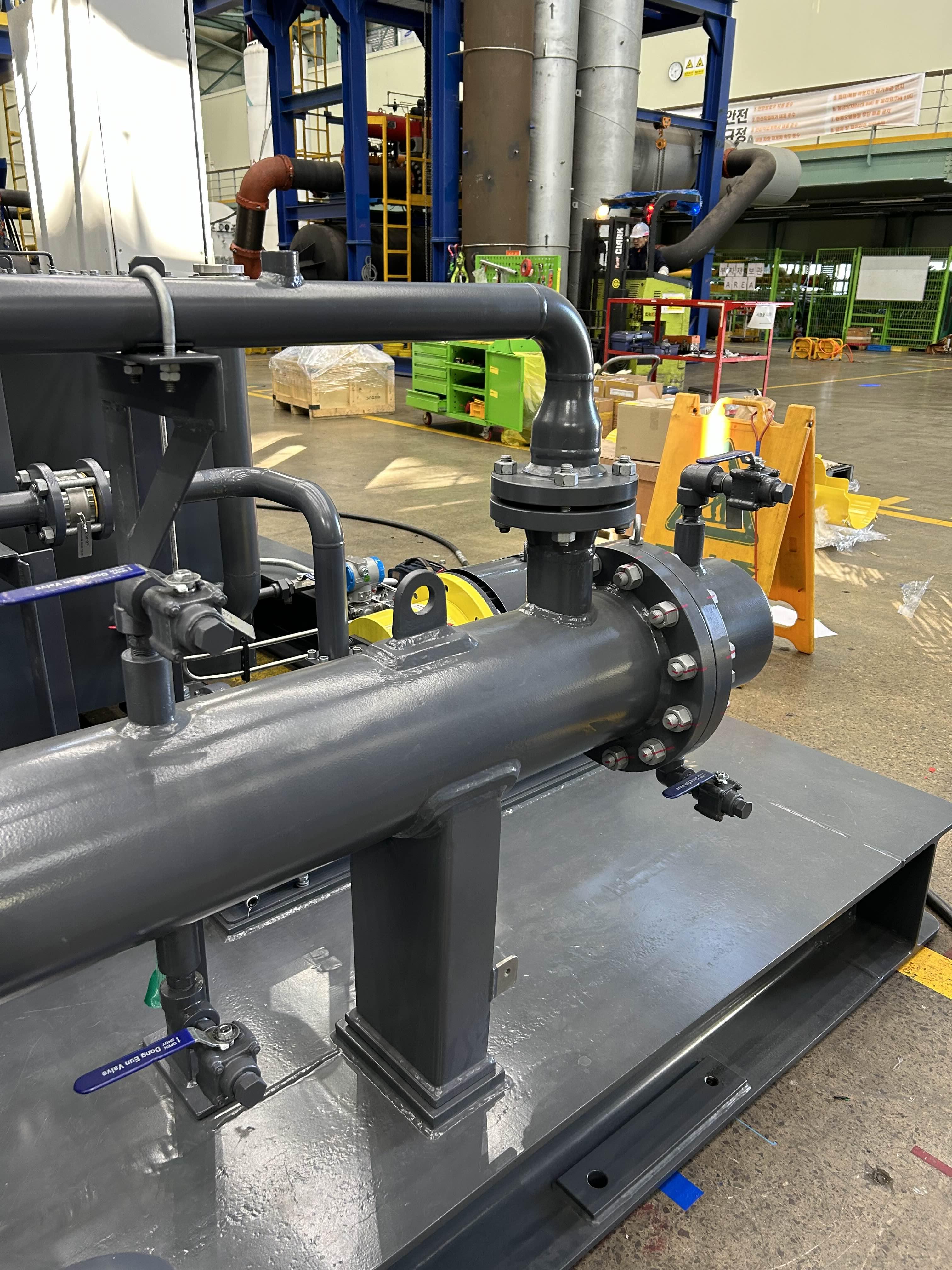

It is after cooler.
There is no gauge board it has stanchion type for the instrumentations.
It is stanchion type.

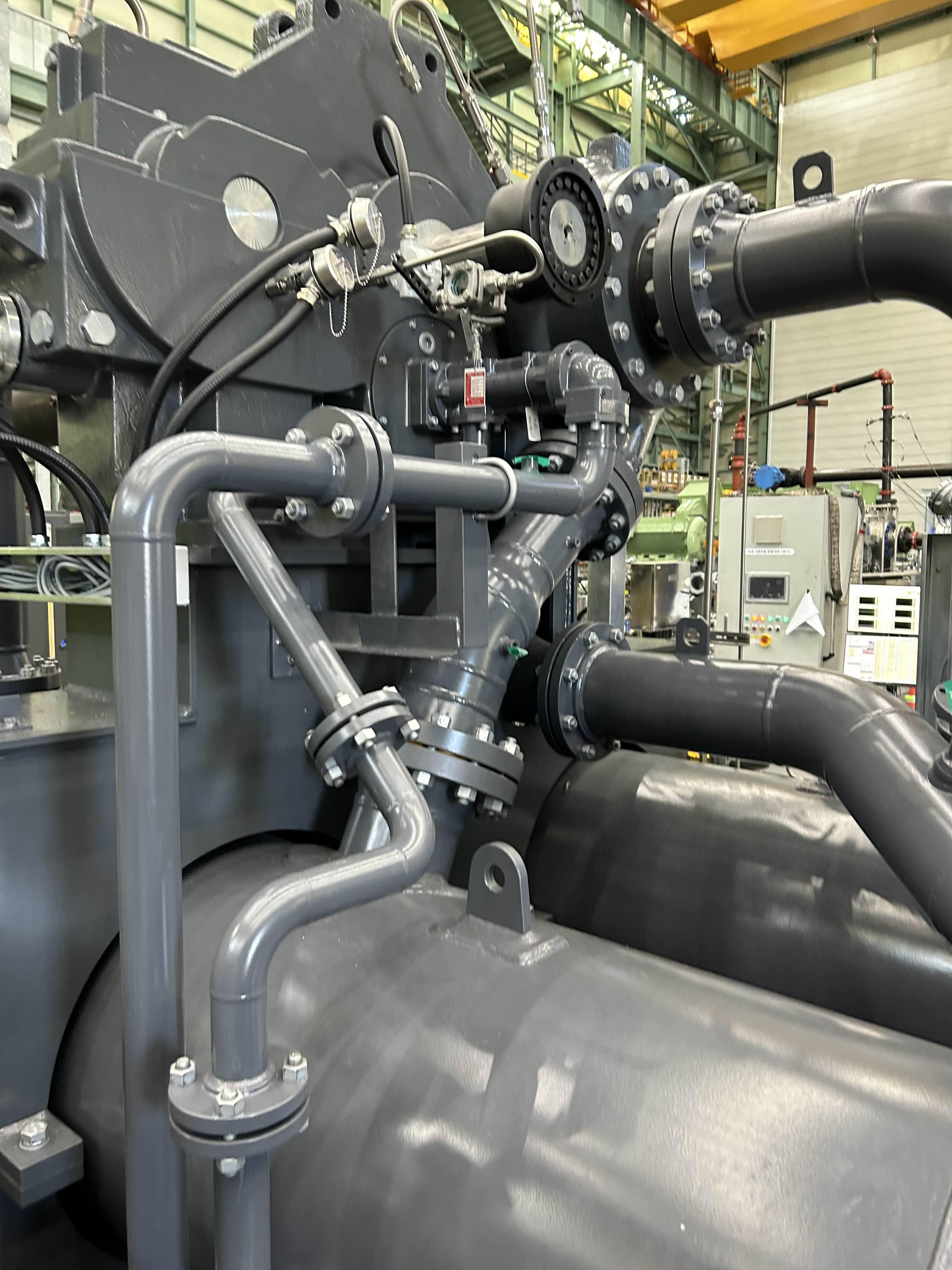

There is seal gas supply with regulator.
It is junction box.

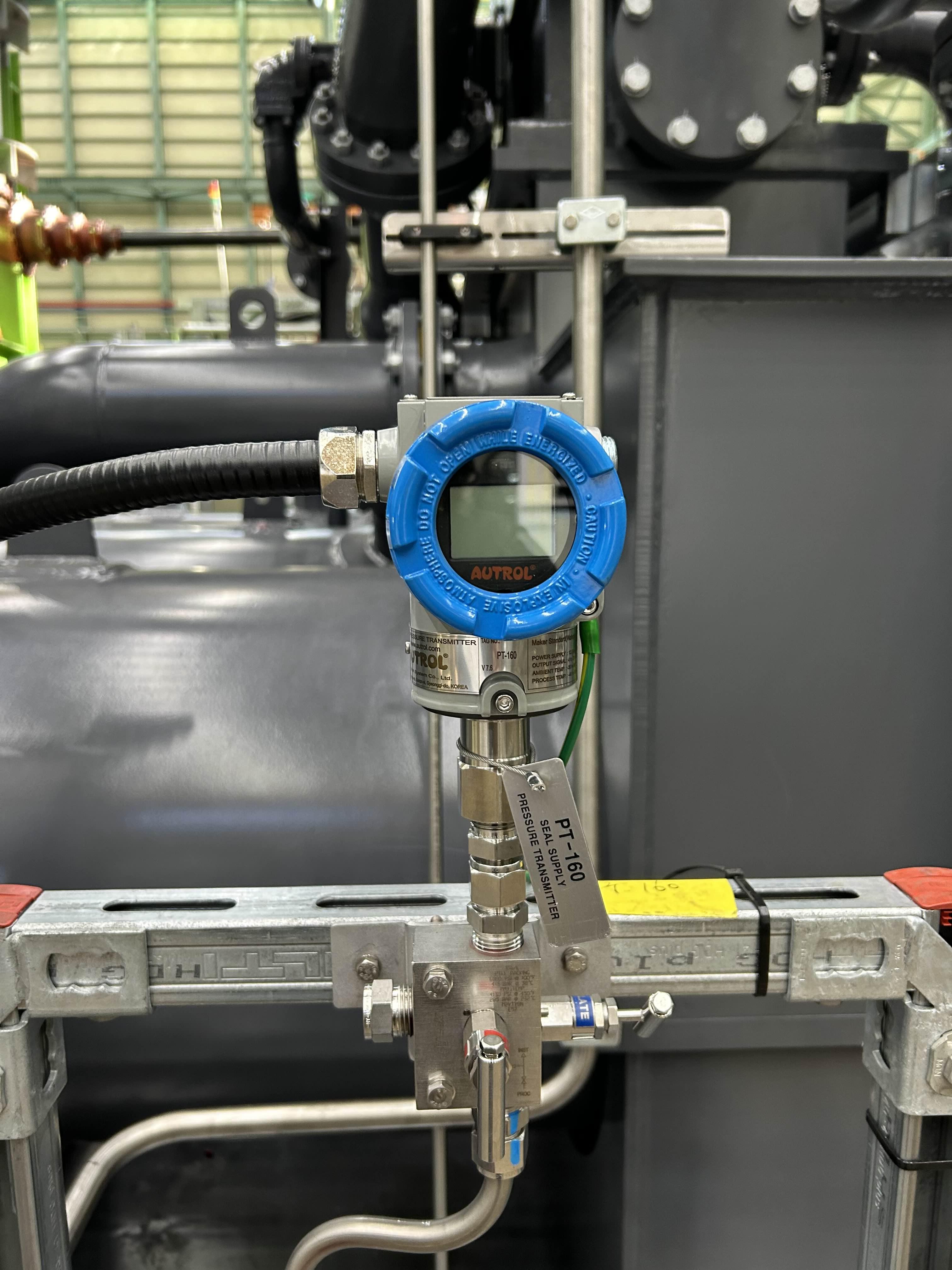

Pressure transmitter.
Oil heater
Lube oil heater
Auxiliary oil pump
Lube oil cooler
