MAC Main Air Compressor

This is large capacity centrifugal compressor.
Flow rate: The normal flow rate is 148,000 Nm3/hr and the design flow rate is 154,000Nm3/hr.
Pressure: Inlet pressure is 0.1MpaA and discharge pressure is 0.63MpaA.
Temperature: Inlet temperature is 308.15K and discharge temperature is 313.15K.

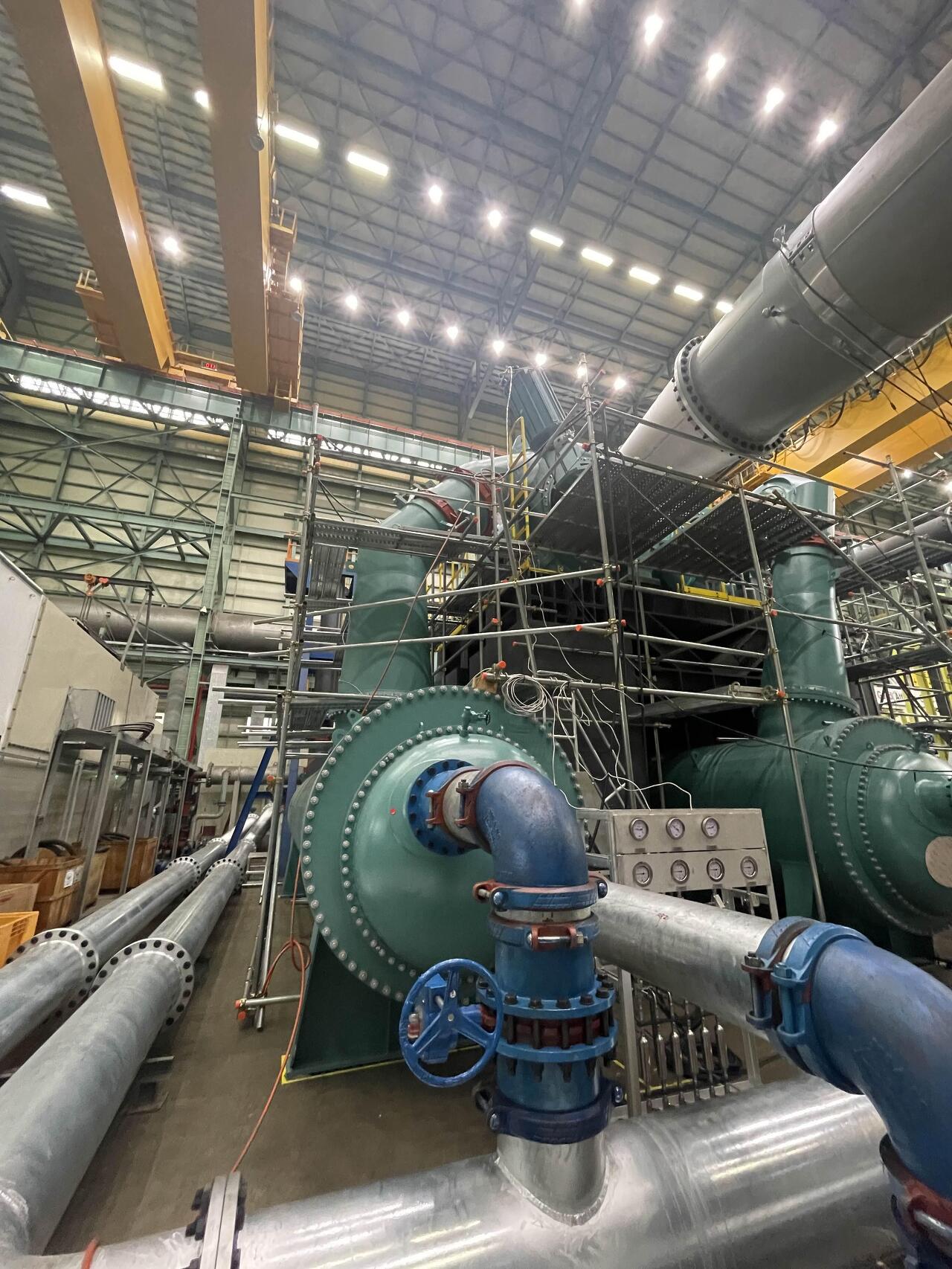

Internal test: The height between ground to motor is about 8.6m.

Inter cooler with cooling water manifold

Gauge board for the temperature gauge

Gear box

Coupling

Auto drain trap
